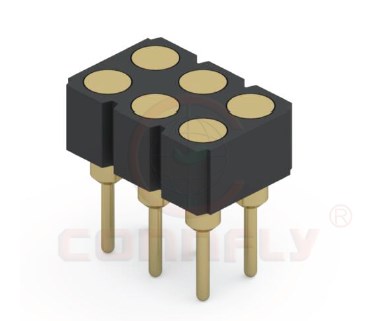

DS1004-04

DS1004-04
2.54mm IC Strip Dip Type

Request sample
Online support
Complaint telephone

Asian Market::Ms.Wendy

Tel：

Indian and middle east Market::Mr.Nick

Tel：

Indian and middle east Market::Ms.Vicky

Tel：

Russian and South American Market::Ms.Nancy

Tel：

European Market::Ms.Summer

Tel：

European Market::Ms.Grace

Tel：

黄工

0574-63506868
  • Drawing
  • Specifications
  • Material information
  • Certifications
  • Lead Free Type
  • Packaging specifications
Product seriesDS1004-04
Pitch2.54mm
Product descriptionIC Strip Dip Type
No.of contacts1*1~1*40,2*2~2*40
Products type Board to Board
Mounting typeV/T
Coldering temperature250±5℃
Rated currency3A
Rated voltage60V
Contact resistance20mΩ maximum
Insulation resistance1000MΩ minimum
Withstand voltage500V AC 1minitue
Operation temperature(-40~105)℃


Housing materialPPS
Housing colorBlack
Pin materialCopper alloy
Pin plating Gold plating


UL 		/
CE 		/
FCC 		/
ROHS 		/
VDE 		/
CCC 		/
CB 		/
ROHS 2.0 /
REACH /
HF /
PFOS /
PFOR /
SS-00259 /
Packing typePolybag
